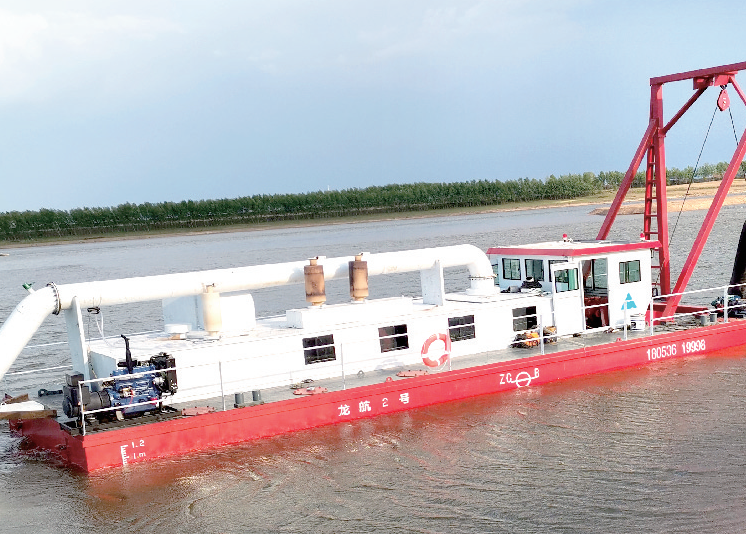

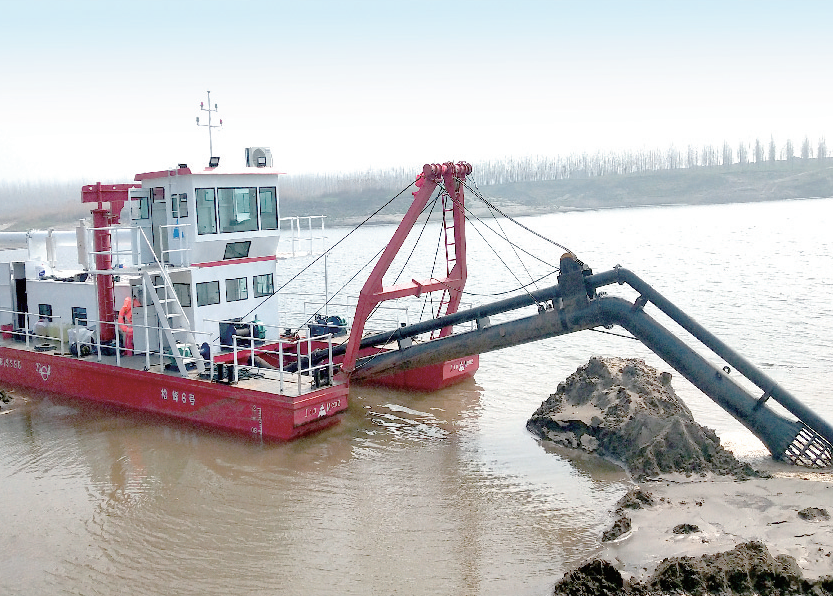

Jet Suction Dredger
Dredge Boat for Sale
Advantages of our dredgers
Jet Suction Dredger utilizes high-pressure water jets to loosen sediment or debris. The dredger creates a slurry by directing the water jets into the material, and then uses suction to draw the slurry into the vessel for subsequent processing and disposal.
Jet Suction Dredger Specification
Working Capacity（clean water） | 250m3/h - 2600m3/h |
Hull Size(L × B×H) | Customized according to customer requirements |
Dredging Depth | 5-15m |
Discharge Distance | 100-2000m |
Suction Pipe Size | 6 inch - 16 inch |
Classification Society Certification
Performance Features
The Jet Suction Dredger uses high-pressure water pumps to create pressurized water. This water is then used to dislodge and break down sediment by impacting it with high-pressure water jets. The resulting mixture forms a slurry. The dredger then pumps the slurry through pipelines to the desired location for various applications, including sand extraction, land reclamation, sediment removal, and dredging in rivers, lakes, reservoirs, ports, and waterways.
- Our Jet Suction Dredgers have onboard processing systems to separate the dredged material from the water. This allows for efficient disposal or reuse of the dredged material.

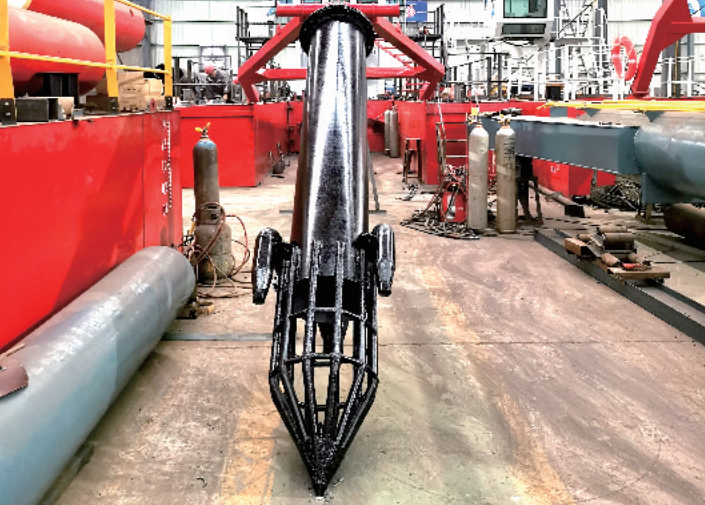

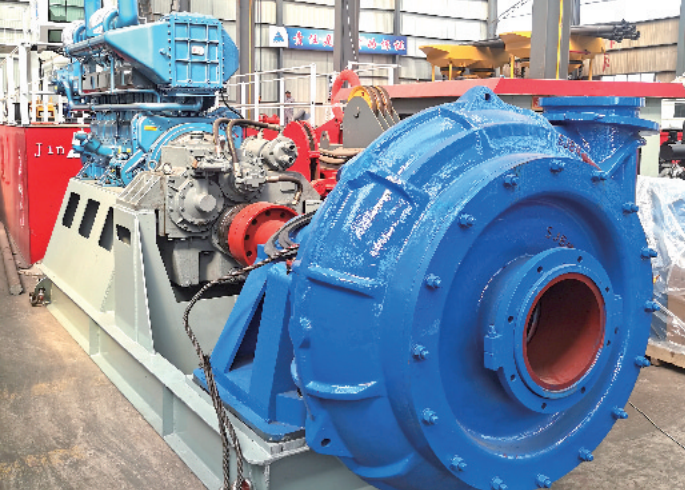

- Out dredgers are equipped with powerful pumps that create the necessary suction force to draw in the slurry. The suction system typically consists of a suction pipe or intake tube connected to the pump, which is lowered into the water to reach the desired depth.
All products could designed according to customer’s requirements!

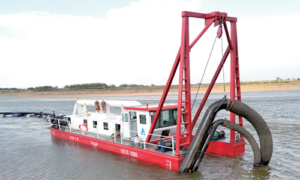

Suspended Pipe Jet Suction Dredger Parameter
16inch 2600m3Â jet suction Dredger
Hull size(L × B ×H) | 16m× 6.2m×1.5m |
Dredging depth | 15m |
Discharge distance | 1000m |
Capacity | 400m3/h(water flow 2600m3/h) |
Power | Main Engine 735kw+ Auxiliary Engine 176kw+ Generator Set 75kw |
14inch 2000m3Â jet suction Dredger
Hull size(L × B ×H) | 16m × 4.2m × 1.5m |
Dredging depth | 15m |
Discharge distance | 1000m |
Capacity | 300m3/h(water flow 2000m3/h) |
Power | Main Engine 735kw+ Auxiliary Engine 176kw+ Generator Set 75kw |
12inch 1400m3 jet suction Dredger
Hull size(L × B ×H) | 14m× 3.4m×1.5m |
Dredging depth | 15m |
Discharge distance | 1000m |
Capacity | 200m3/h(water flow 1400m3/h) |
Power | Main Engine 456kw+ Auxiliary Engine 122kw+ Generator Set 75kw |
10inch 900m3 jet suction Dredger
Hull size(L × B ×H) | 9m × 3.3m× 1.3m |
Dredging depth | 12m |
Discharge distance | 500m |
Capacity | 100m3/h(water flow 900m3/h) |
Power | Main Engine 230kw+ Auxiliary Engine 122kw |
8inch 600m3 jet suction Dredger
Hull size(L × B ×H) | 7m × 3.2m × 1.3m |
Dredging depth | 10 |
Discharge distance | 100m |
Capacity | 80m3/h(water flow 600m3/h) |
Power | Main Engine 170kw+ Auxiliary Engine 60kw |
6inch 250m3 jet suction Dredger
Hull size(L × B ×H) | 6m × 2.2m × 1.3m |
Dredging depth | 10 |
Discharge distance | 100m |
Capacity | 10m3/h(water flow 250m3/h) |
Power | Main Engine 132kw+ Auxiliary Engine 20kw |

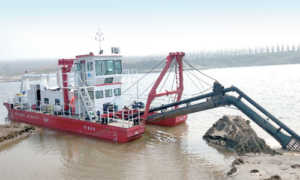

Jet Suction Dredger – Rigid Pipe
16inch 2600m3
Hull size(L × B ×H) | 18m × 6.3m × 1.5m |
Dredging depth | 10m |
Discharge distance | 2000m |
Capacity | 400m3/h(water flow 2600m3/h) |
Power | Main Engine 895kw+ Auxiliary Engine 176kw+ Generator Set 50kw |
14inch 2000m3
Hull size(L × B ×H) | 20m × 6.2m× 1.5m |
Dredging depth | 12m |
Discharge distance | 2000m |
Capacity | 300m3/h(water flow 2000m3/h) |
Power | Main Engine 735kw+ Auxiliary Engine 176kw+ Generator Set 50kw |
6inch 250m3
Hull size(L × B ×H) | 9m × 3.2m × 1.3m |
Dredging depth | 5m |
Discharge distance | 300m |
Capacity | 40m3/h(water flow 250m3/h) |
Power | Main Engine 132kw+ Auxiliary Engine 40kw |
Commercial Vessels for Sale
Related Products
Related products
-
Dredger VesselSand Dredger
-
Dredger VesselBucket Dredger
-
Dredger Vessel500m3/h Cutter Suction Dredger
-
Dredger Vessel1000m3/h Cutter Suction Dredger
-
Dredger Vessel2000m3/h Cutter Suction Dredger
-
Dredger Vessel3500m3/h Cutter Suction Dredger
Our Shipbuilding Experience
Our company has successfully undertaken large-scale construction projects for German shipowners in the commercial shipping sector, delivering versatile vessels with a capacity of 6,500 tons. Furthermore, we possess the expertise to build a wide range of vessels weighing up to 12,000 tons, including yachts, tankers, offshore engineering vessels, chemical carriers, multipurpose cargo ships, and container ships. The vessels we construct are registered with reputable classification societies such as CCS, DNV, BV, and GL. We are also equipped to meet the specific requirements of other classification societies such as ABS, LR, NK, and more.
