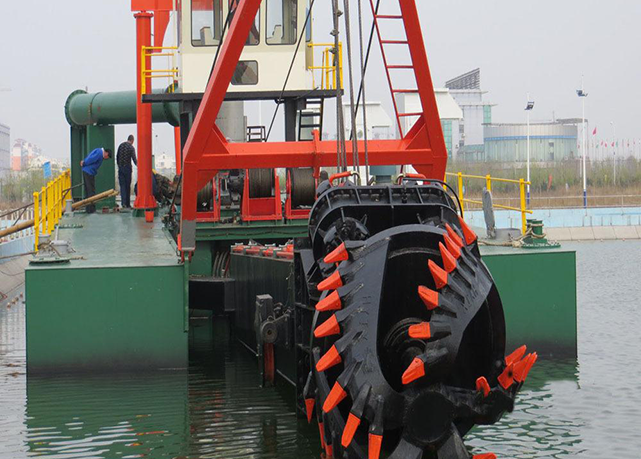

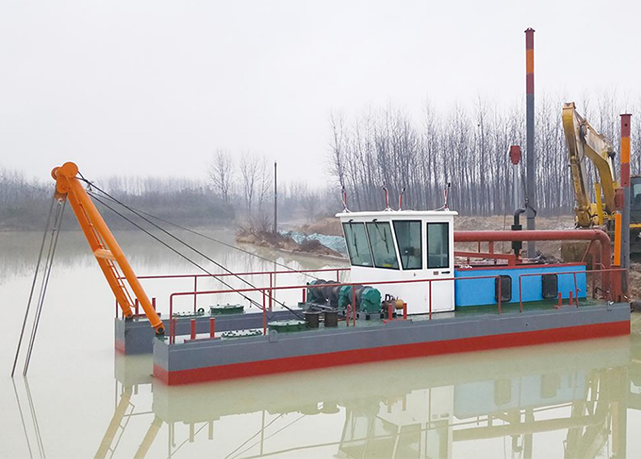

250m3/h Cutter Suction Dredger

Dredge Boat for Sale

Advantages of our dredgers

Featuring a maximum dredging depth that can be customized according to project needs, this 250m3/h Cutter Suction Dredger enables efficient excavation and removal of sediment from rivers, lakes, and coastal areas. Its working capacity of 250m3/h ensures the effective handling and transportation of the dredged mixture, facilitating smooth and continuous operations.

  • Main hull material: Steel and Steel Aluminum Ship

250m3/h Cutter Suction Dredger Vessel Specification

Total Length * Width * Height

Customized according to customer requirements

Main Hull

Customized according to customer requirements

The Maximum Dredging Depth

Customized according to customer requirements

Main Engine Brand Name

Cummins/Weichai

Winch

The big arm winch, travelling winch

Classification Society Certification

Performance Features

  • Customizable Dimensions: The total length, width, and height of the 250m3/h dredger vessel can be tailored to meet your specific requirements. This ensures a perfect fit for your project, optimizing performance and maneuverability.
  • Main Hull: The main hull of the cutter suction dredge boat is carefully constructed to provide stability, durability, and optimal performance during dredging operations. It is designed to withstand various environmental conditions, ensuring reliable and efficient performance.
  • Maximum Dredging Depth: The dredger vessel can be customized to achieve the maximum dredging depth required for your project. This allows for precise excavation and removal of sediment from the seabed or river bottom, accommodating the specific depth requirements of your operation.
  • Working Capacity: With a working capacity of 250m3/h, this dredger ship is capable of handling a significant volume of sediment. It efficiently dredges and transports the mixture of water and sediment, maximizing productivity and reducing downtime.
  • Cutter Head Size: Equipped with a cutter head size of 650mm, the vessel ensures effective cutting and agitation of the sediment. This facilitates easier suction and transportation through the dredger’s system, enhancing the overall efficiency of the operation.
  • Discharging Distance: The 250m3/h cutter suction dredger is designed to discharge the dredged material up to a distance of 1000m. This provides flexibility in placing the sediment at the desired location, whether it’s for land reclamation, beach nourishment, or other purposes.

250m3/h Cutter Suction Dredger Features

Water flow

250m3/h

Solid sand capacity

50m3/h

Max. dredging depth

6m

Discharge distance

1000m

Draught

0.8m

Weight

21T

Total power

142kw

Total fuel oil consumption

28kg/h

Dredger LOA

16m

Hull size(LxBxH)

12m×3.2m×1.3m

Main pontoon(L×B×H)

-

Side pontoon(LxBxH)

-

Structure

Can be dismanted and re-assembled easily. box structurelower delivery cost

Main engine brand & power

WEICHAI/122KW

Auxiliary engine brand & power

-

Harbour generator

20kw

Dredging pump

Warman Technology

Discharge pipe Dia.

150mm

Head

50m

Cutter head Dia.

800mm

Cutter power

20kw

Hydraulic control system

PLC Siemens

Ladder Winch force & Quantity

40KN*1

Swing Winch force& Quantity

40KN*2

Operation room

Adjustable chair, movable side-window. air condition,PLC system, signal lights and floodlights.

Related Products

Our Shipbuilding Experience

Our company has successfully undertaken large-scale construction projects for German shipowners in the commercial shipping sector, delivering versatile vessels with a capacity of 6,500 tons. Furthermore, we possess the expertise to build a wide range of vessels weighing up to 12,000 tons, including yachts, tankers, offshore engineering vessels, chemical carriers, multipurpose cargo ships, and container ships. The vessels we construct are registered with reputable classification societies such as CCS, DNV, BV, and GL. We are also equipped to meet the specific requirements of other classification societies such as ABS, LR, NK, and more.
